A power supply and serializer solution for automotive camera modules

A seemingly simple design, in fact, full of the efforts of several engineers and day and night, this design needs to undergo rigorous and repeated evaluation, before it can be launched on the market. TI Designs reference design library , sincerely for you to create a classic! Looking for more reference designs? Log TI Designs Reference Design Library, there is the design you want!



TI Designs Design Library will introduce you a series of reference design selections, including industrial, medical, automotive electronics, factory automation and control, building automation, personal electronics and other applications, updated weekly, don't miss it!



Now, let's take a look at the good recommendations in the fifth issue of "Automotive Electronic Reference Design" !



To learn more, click here for the original introduction to this reference design.



Design overview

The PMP9351 is a compact power and serializer solution for automotive auxiliary camera modules using the OmniVision image sensor OV10635 . This reference board has two LMR22007 synchronous buck regulators that provide two 3.3V outputs and one 1.5V output to power the OV10635 evaluation board that bypasses the onboard LDO . This design occupies an effective PCB board area of 20x20mm . The system 9V input voltage from the rated voltage of the ECU, which is the input range of 5.5V to 20V. This reference board includes the DS90UB913Q serializer and supports a coaxial cable power configuration that allows input power and FPD-Link III signals to be transmitted over a single coaxial cable .

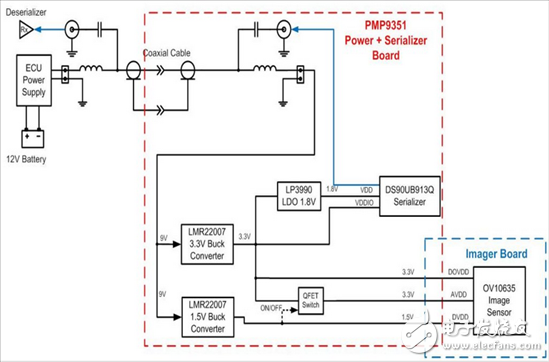

Design system block diagram (click here to download the complete block diagram)

>> Learn more



Design features:

·          Power and serializer solutions designed for the OmniVision OV10635 image sensor in automotive cameras

·          Compact solution size, board area 20x20mm

·          3.3V and 1.5V outputs with output filters to cover I/O , core, analog voltage rails and ensure high image quality

·          5.5V to 20V input voltage range, 9V rated input from the ECU

·          Coaxial cable power supply configuration for transmitting input power and FPD-Link III signals over a coaxial cable

·          With a compatible interface, you can connect to the OV10635 EVM with a slight modification of the board

>> Learn more





Design documentation (click to download full design resources)
